48 punti della lente 6V 100W LED del modulo TYPE2-M SMD3030 91% Tranmittance del PWB

48 punti della lente 6V 100W LED del modulo TYPE2-M SMD3030 91% Tranmittance del PWB

modulo del PWB LED di 6V 100W

48 punti della lente del modulo del PWB LED

Lente principale SMD3030 dell'iluminazione pubblica

Luogo di origine:

Shenzhen, Cina

Marca:

Sunshineopto

Certificazione:

SGS,ROHS

Numero di modello:

SUN-LD240X160-48X4-T2-M

Contattaci

Chiedi un preventivo
Dettagli del prodotto
Modello NO.:
SUN-LD240X160-48X4-T2-M
Angolo d'apertura:
TYPE2-M
Dimensione della LENTE:
240X160MM
Materiale:
PC ottico del grado
CHIP DEL LED:
3030 SMD LED, 150mA, 6V, 140-150LM/W
Tranmittance:
91%
applicazione:
Alta luce della baia/luce area/dell'iluminazione pubblica/luce di progetto/luce del quadrato ecc
Dimensione del PWB:
216x136x1.5mm
Circuito per il bordo del PWB:
8 serie 24parallel, 48V HANNO PRODOTTO
VERTICALE:
236x156x2.6mm per la guarnizione
Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Imballaggi particolari
Cartoni
Tempi di consegna
3-4 giorni lavorativi
Termini di pagamento
T/T, PAYPAL, Western Union, grammo dei soldi
Capacità di alimentazione
5000pcs/months
Descrizione del prodotto


48 points lens TYPE2-M 3030 SMD 6V White color 100W 120W 150W PCB Module



Features :

  1. This SKD 192 pieces 3030smd 1w LED Array lens with PCB Module is best choice to design power lamps like 100-150w  and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 80X150/ 90/60/90X120 degree and Vertrial 80x150 degree and so on.



Specifications:


1, Product Name

48 points lens TYPE2-M 3030 SMD 6V White color 100W 120W 150W PCB Module

2, Model No

SUN-LD240X160-48X4-T2-M

3, Main parts

48 Array lens , silicon gasket+PCB+ 3030 SMD LED

4, Lens Material

PC

5, Lens size

240X160MM

6, Transmittance

91%

7,LEDS

Orginal package 3030SMD LED, 140-150LM/W, 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7  work days for 10000 sets

10, Angle

Typ2-M

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:


DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days



Applications:
It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

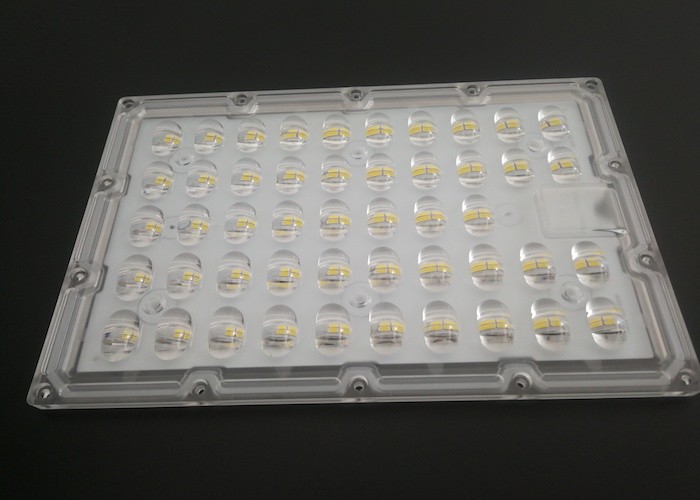

48 punti della lente 6V 100W LED del modulo TYPE2-M SMD3030 91% Tranmittance del PWB 0

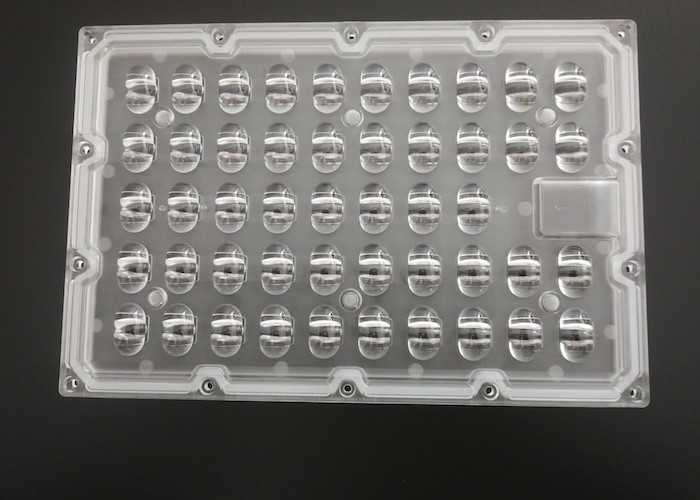

LENS Dimensions :

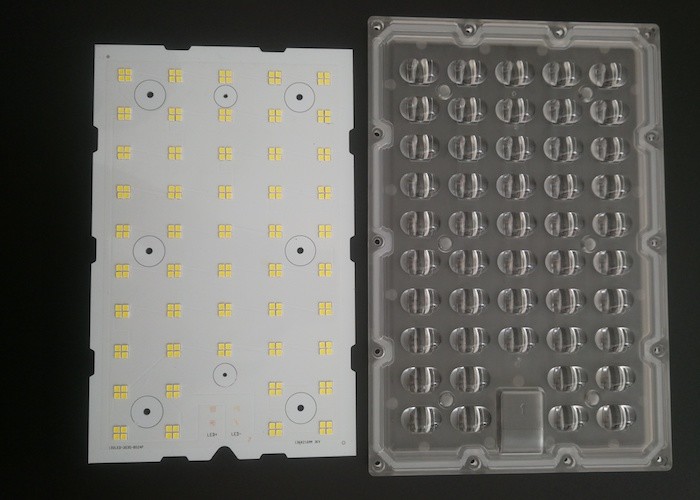

 48 punti della lente 6V 100W LED del modulo TYPE2-M SMD3030 91% Tranmittance del PWB 1
Beam pattern:

TYPE2-M:
48 punti della lente 6V 100W LED del modulo TYPE2-M SMD3030 91% Tranmittance del PWB 2
